# Dataset & Isolation

1. Go to their official website & press Download UVR. If you want to use BS / Mel Roformer you are going to need to install this.



2. It will redirect you their GitHub page. Click the download link for your operating system.
   UVR is available both on Windows & Mac.

3. Once the installer finishes downloading, execute it & follow the instructions.

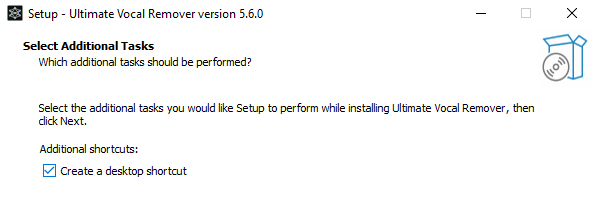

   Make sure to tick 🗹 Create a desktop shortcut for an easier access to UVR.



• Click Select input to select your audio/s. Or just drag the files to it.
  ‎

• In Select output you can define the folder for the results.

  ‎

‎

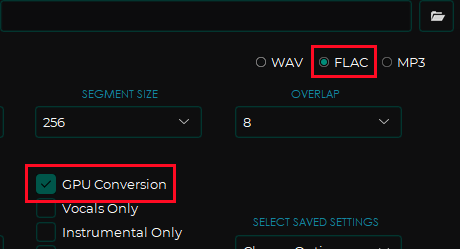

1. At the right you can select the output format.
   We recommend picking FLAC. Learn why here.
   ‎

2. If your GPU is compatible with CUDA, toggle GPU Conversion on for a faster process.



This step is not mandatory, but recommended for better results.

‎

1. Select the Process Method and Model depending on your use case and the List of Best Models.

   ‎

2. Now click the long Start Processing button.

‎

Note: they actually are all MelBand Roformer models, but there isn't a proper list yet for them

‎

• Click the wrench (🔧) on the left & go to Download Center
• Select the category of the model (Process Method)
• Unfold its dropdown & select the model that you need
• Then click the download button (📥). The model will download, which will take a few minutes

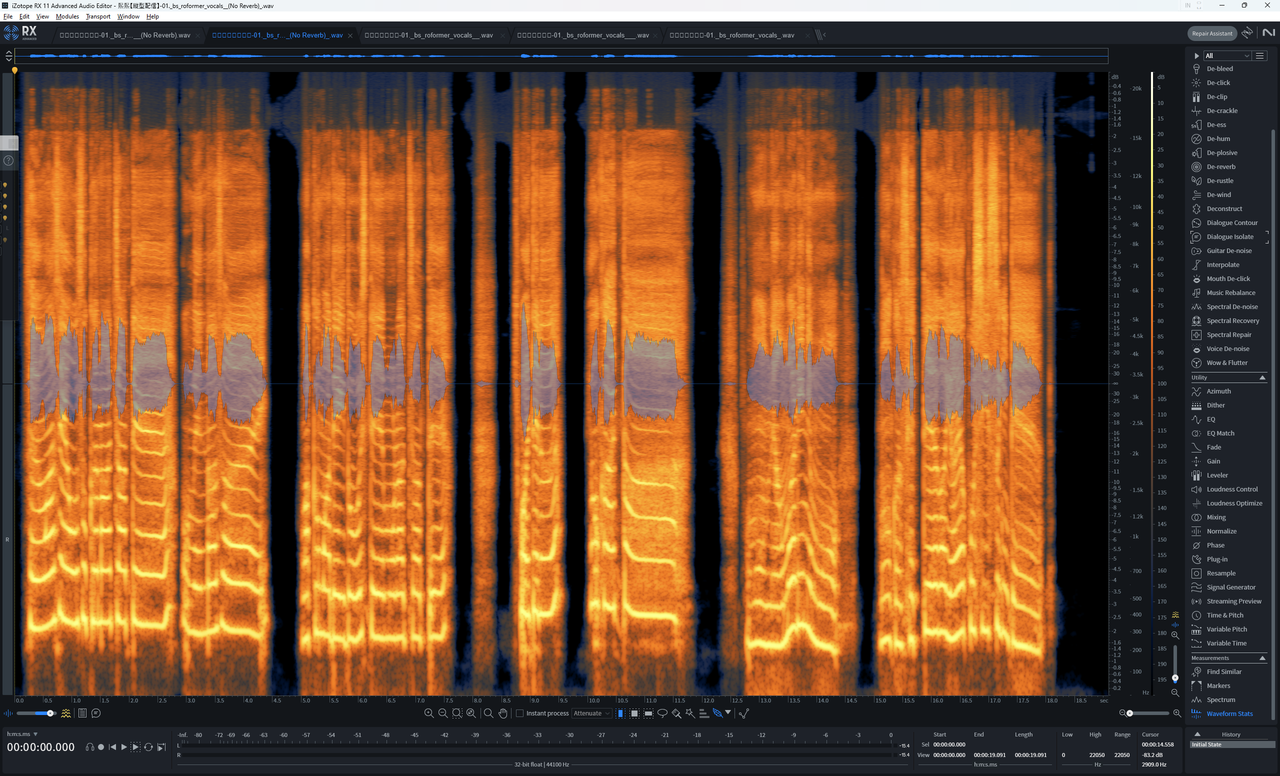

• Modify the Aggression Setting value on the right.
• This determines the depth of the extraction. Only the VR method has it.
• A higher value will deepen the extraction, and a lower one will soften it.
• Each audio is different, so you'll have to test the ideal value.

• Run the audio through BVE. Modify the Aggression Setting if necessary.

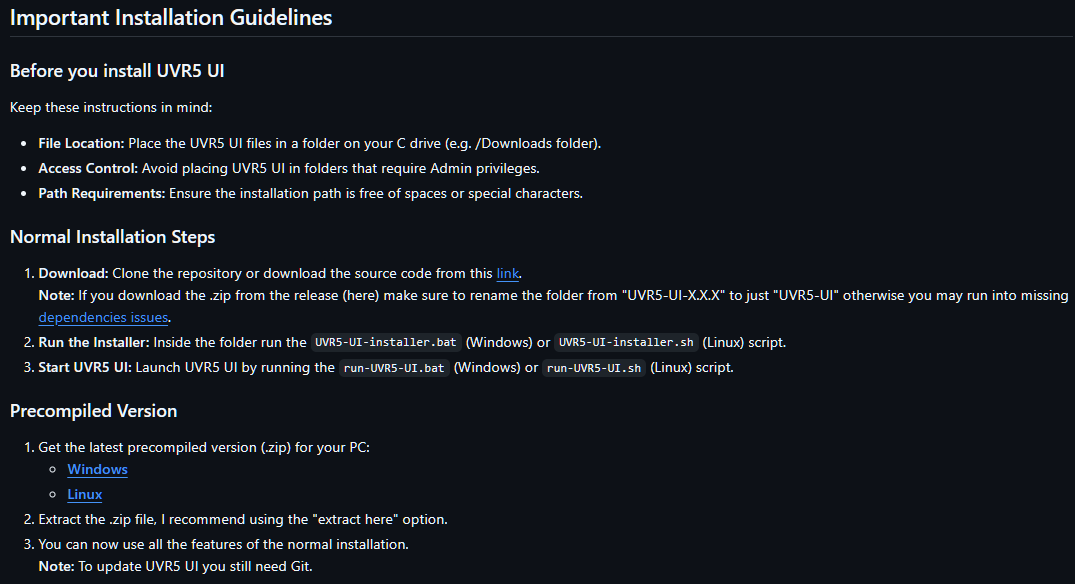

1. Go to their Eddy's UVR5 UI Latest Release & Follow the installation steps (Precompiled versions are suggested).

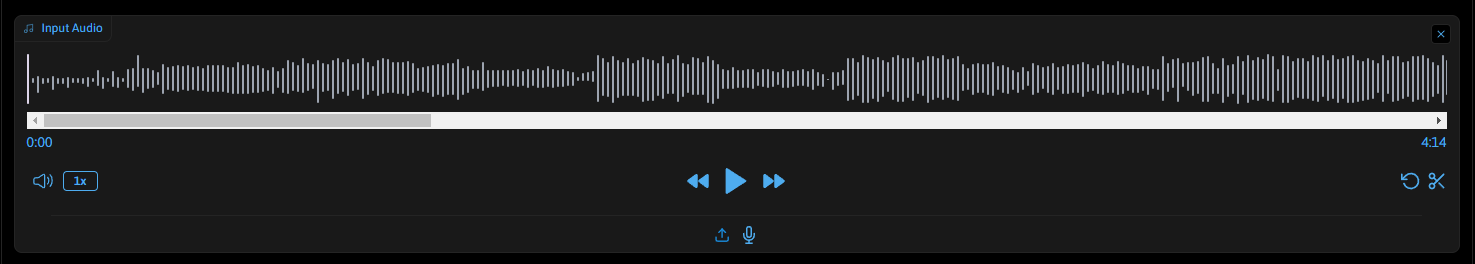

1. Tap the Input Audio box & select your audio, or simply drag & drop.
   ‎
   ‎
   ‎

‎

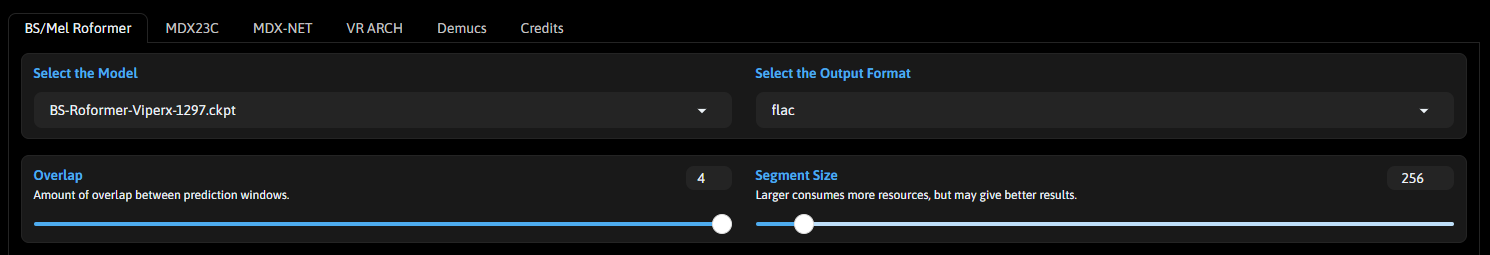

2. Once it's done uploading, select a Model by the List of the Best Models. Under that you can change Segment Size and Overlap, the defaults are fine.
   ‎

‎

1. Click Spererate! below. Wait a moment for the audio to process.
   ‎

2. Playable audios will then appear in the output boxes below. To download the output, click the little download icon in the top right.

• Modify the Aggression Setting value on the right.
• This determines the depth of the extraction. Only the VR method has it.
• A higher value will deepen the extraction, and a lower one will soften it.
• Each audio is different, so you'll have to test the ideal value.

• Run the audio through BVE. Modify the Aggression Setting if necessary.

• Report your issue here.

Access the space here, you don't need an account to use this, but making one will get you more free time, and paying for HuggingFace PRO will give you the most ZeroGPU time.

1. Tap the Input Audio box & select your audio, or simply drag & drop.
   ‎
   ‎
   ‎

‎

2. Once it's done uploading, select a Model by the List of the Best Models. Under that you can change Segment Size and Overlap, the defaults are fine.
   ‎

‎

1. Click Spererate! below. Wait a moment for the audio to process.
   ‎

2. Playable audios will then appear in the output boxes below. To download the output, click the little download icon in the top right.

• Modify the Aggression Setting value on the right.
• This determines the depth of the extraction. Only the VR method has it.
• A higher value will deepen the extraction, and a lower one will soften it.
• Each audio is different, so you'll have to test the ideal value.

• Run the audio through BVE. Modify the Aggression Setting if necessary.

• Report your issue here.

ZeroGPU HuggingFace Spaces have a max inference time duration, it’s the time it takes to do an Inference (use the model, not the time of your audio file itself), on default it’s around 1 minute which is what Ilaria RVC uses. You need to retry with a shorter audio, you could also split your audio.

ZeroGPU HuggingFace Spaces have a quota per account, if you aren’t signed in you will get less quota so it’s better to login for more quota. You could get the ‘Sign-up’ part even if you are logged in. The ZeroGPU Quota can’t be seen but it isn’t unlimited. You can either:

• Login so you get more quota
• Wait
• Pay to be an HuggingFace PRO Member to get X5 times more quota

1. First access Eddy's UVR UI Google Colab.
   ‎

2. Then Log in to your Google account.
   ‎

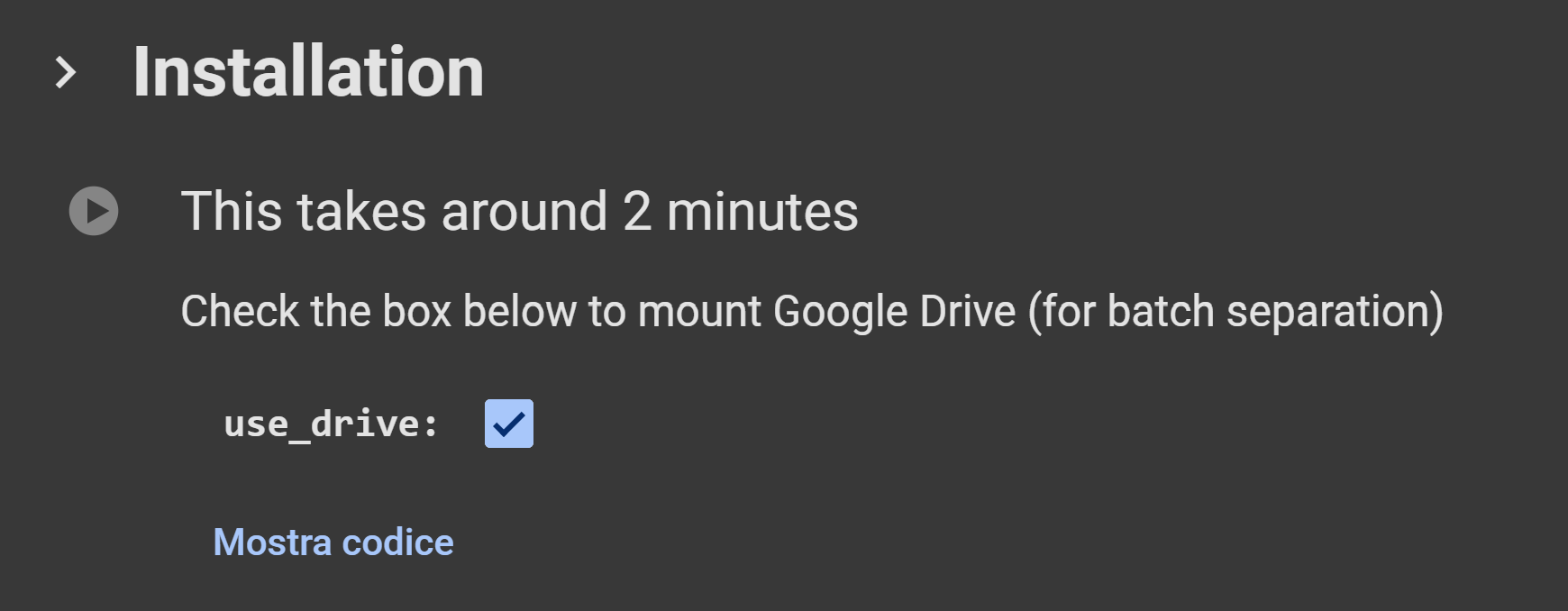

3. Execute the Installation cell by pressing the play button , optionally check use_drive & grant all the permissions for Batch Separation. ‎
   ‎
   ‎

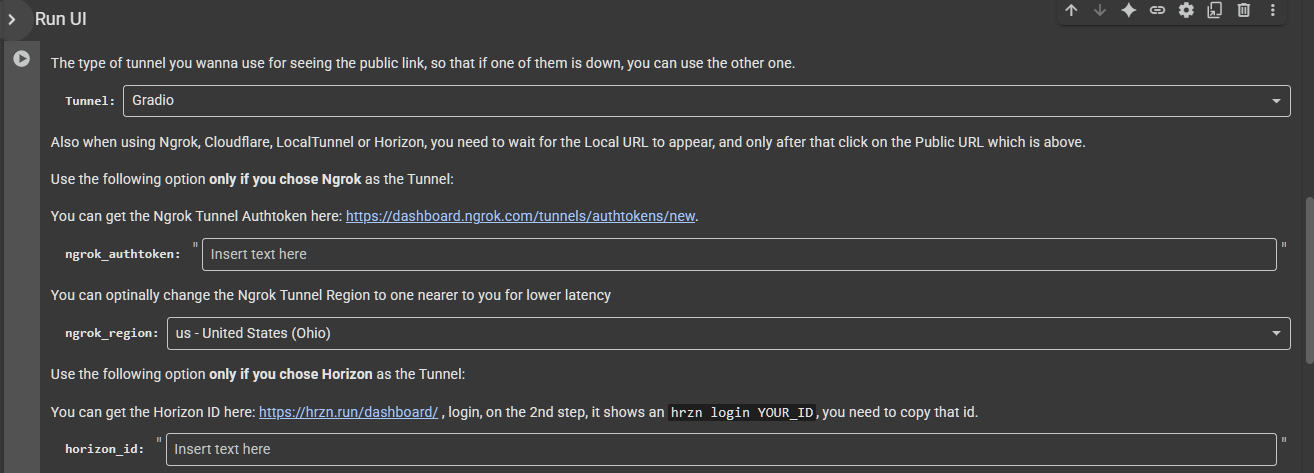

4. Then run the Run UI cell. You can choose different tunnels in case one is down.



• Once it's done open the public url, and it will be the same as using Eddy's UVR5 UI Local/HF-Space.

• You have exhausted the GPU runtime of Colab.

This is jarredou's Music Source Separation Training (MMST) (Colab Inference).

1. First access the Colab space here.
   ‎

2. Then Log in to your Google account.
   ‎

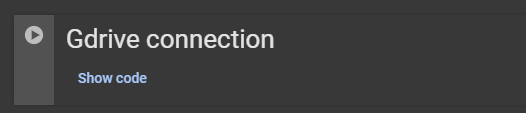

3. Execute the Gdrive Connection cell by pressing the play button . Grant all the permissions.
   ‎
   ‎
   ‎

• It'll finish once the logs say Mounted at /content/drive ‎

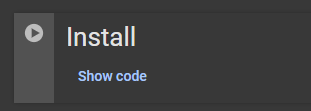

5. Then run the Install cell.

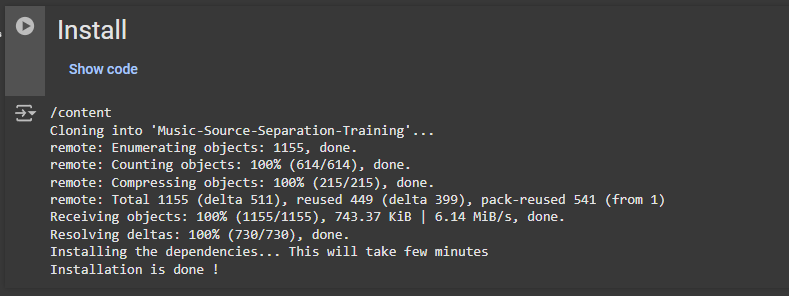

• Once it's done it will look like this:



‎

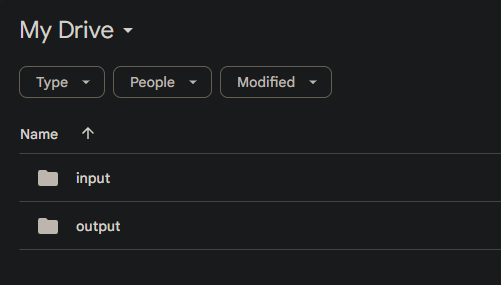

• In Google Drive, make two folders, named input & output.
  ‎

  ‎
  ‎

‎

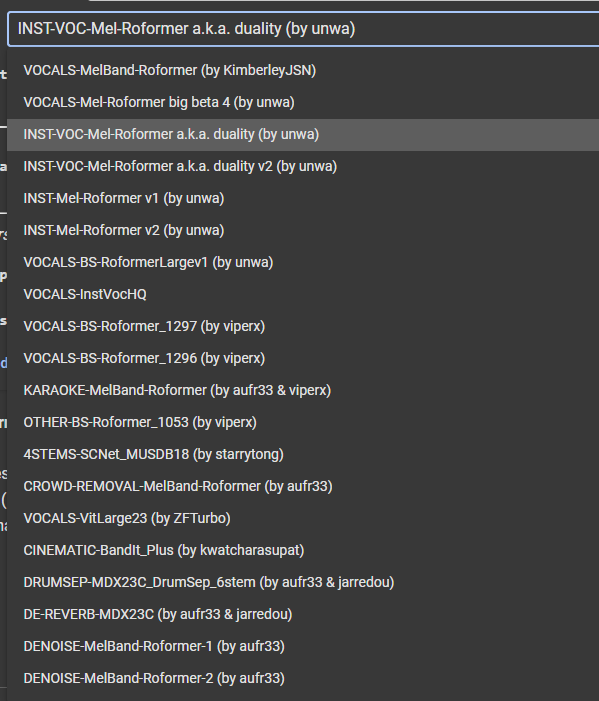

1. Select your model of choice and run the Separation cell. You can look for the List of the Best Models.

‎
‎
‎

2. Download the result located in the output folder.

‎

• You have exhausted the GPU runtime of Colab.

• MVSEP is a website for isolating vocals, that works similarly as UVR.

• For free users, you can't convert audios in batches or longer than 10 minutes. If that's your case, trim it into different pieces.

• There is a queue so make sure you make an account to skip most of it.

1. First, login. ‎

2. Once logged in, go to the main page.

‎

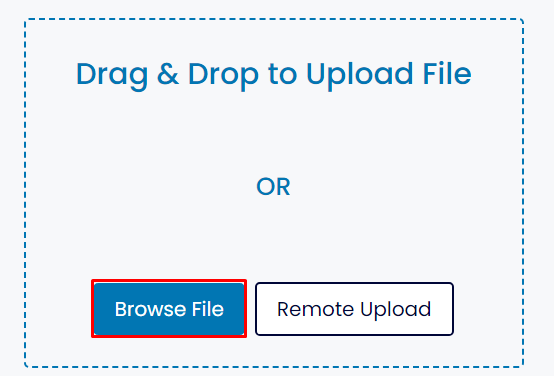

1. Click Browse File & select your audio, or simply drag & drop. The audio will begin to upload.



‎

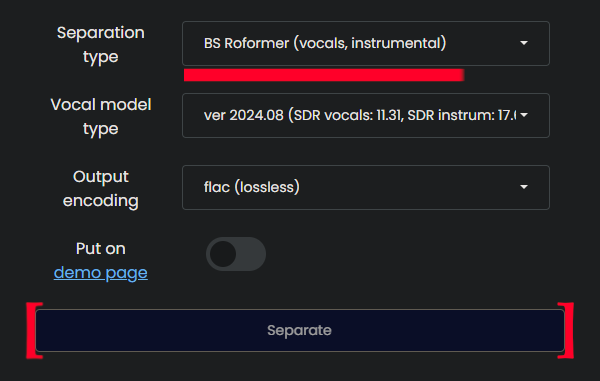

1. In Separation type Select a Model based on the Best Models List. ‎

2. In Output encoding select FLAC.
   We recommend selecting FLAC from now on. Learn more here.
   ‎

3. Once the audio is done uploading, click Separate

   ‎

   ‎

‎

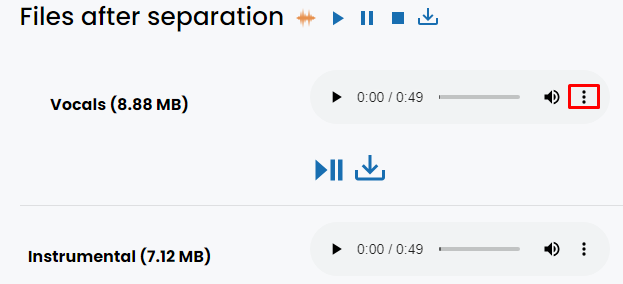

• When it's done converting it will redirect you to a page where you can listen the results.

1. Tap the three buttons of the Vocals audio and then Download.
   ‎

2. Same thing for the Instrumental, if you wish to keep it.

   ‎

• Using the Separation Type of DeNoise by aufr33, you can modify the Aggressiveness. This determines the depth of the extraction.
• A higher value will deepen the extraction, and a lower one will soften it.
• Each audio is different, so you'll have to test the ideal value.

• Try running the audio through MelBand Karaoke or BVE. Modify the Aggression Setting if necessary.

Signal to distortion ratio, the higher is technically better, but your ears are more trustworthy.

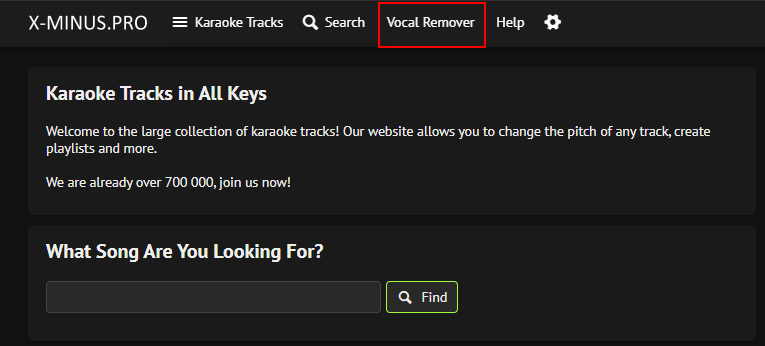

1. First go to X-minus's website and click the "Vocal Remover" at the top right.

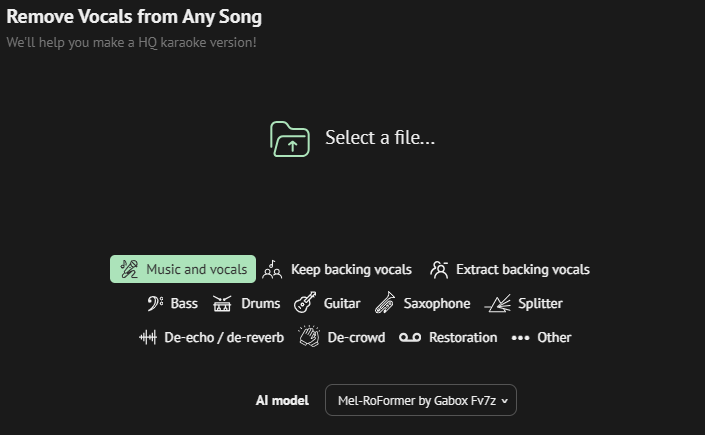

2. Then select the Seperator type you need and the model based on the Best Models List

3. Then click "select a file" and choose a audio file, or you can drag and drop a file. And when it's done it will look like this:

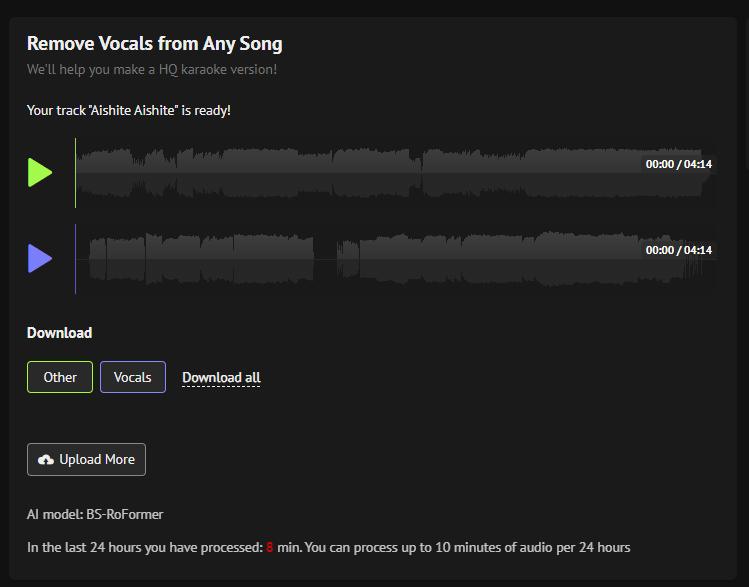

4. You can now click "Vocals" to download the vocals and "Other" to download the instrumentals.

• # Best models for X-Minus:

Go to their Official Website & buy it.

Getting the highest quality audio works best for Izotope and will result in a better model. Ideally, you want to preserve the dynamic range, the frequencies, and the fidelity/clarity. If you're working with low quality audio, RX cannot upscale or restore the missing details that were originally there. The end result will be audible as the voice model quality will be muddied with artifacts/tearing.

Mic proximity is also another factor to consider as you want the voice to be consistent since RVC does not handle audio frequency response well and will muffle the pronunciation of words. Keep this in mind for studio sessions and video game voice lines rips as it may have been bass boosted, compressed, or eq'd by default. Arguably, more variation of the voice will add to the vocal range of the model but we want to keep the accent consistent as well.

You can use Cobalt, yt-dlp, or Loader.to. Overall, yt-dlp is the best for ripping. Preferably rip the audios in Opus format so the downloaded audio will be 48khz, which can be resampled down to 44.1k on Izotope and trained on 40k via RVC. The quality depends on what is uploaded on the server side so this might not always be the case.

For YT-dlp, the command prompt is:

yt-dlp -x ffmpeg -i audio.opus audio.wav or yt-dlp.exe --audio-format wav -x https://www.youtube.com/watch?v=5aYwU4nj5QA&t=2s

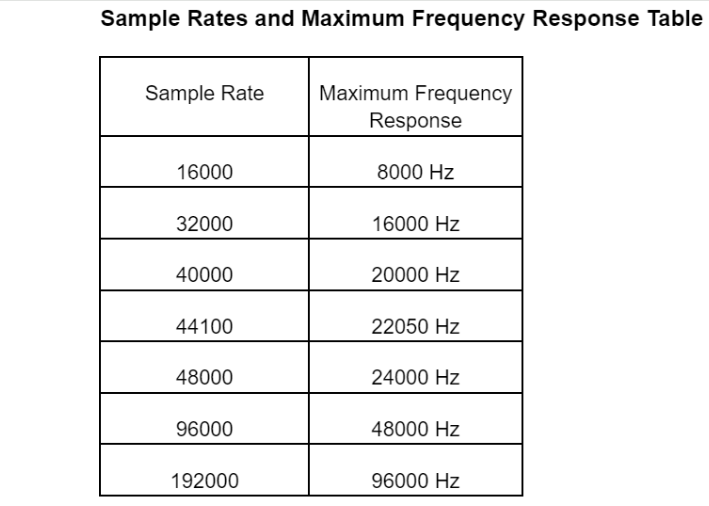

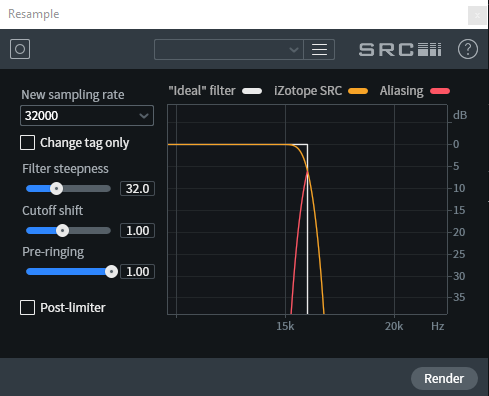

Resampling down to 32k is also fine since it results in less harsher sibilance and -plosives for your model.

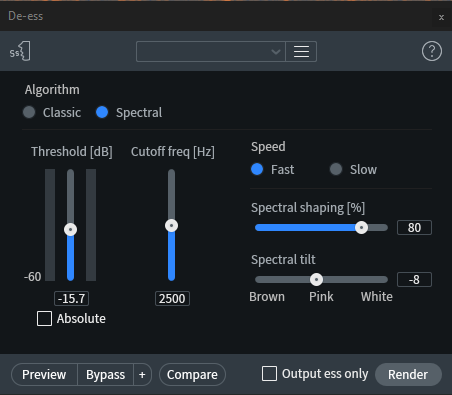

• Sibilance's are the hissing sounds when a person speaks, and plosives are the sounds of air that are released through the mouth. They are both considered consonant sounds with RVC.

Whenever you export the dataset, you can export it to WAV 32-bit. For Flac files, use 24-bit. We never use MP3 files since RVC heavily compresses those audio files.

Open the WAV or FLAC file.

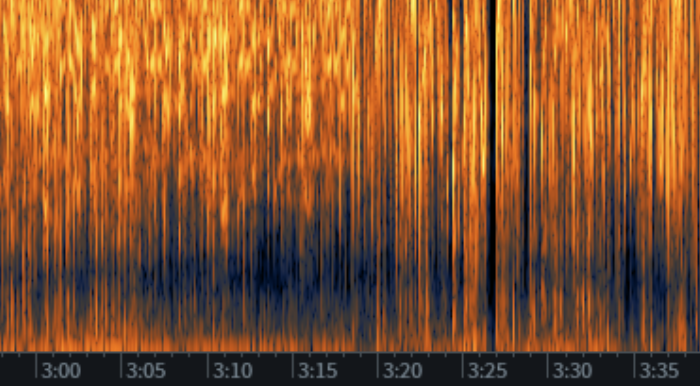

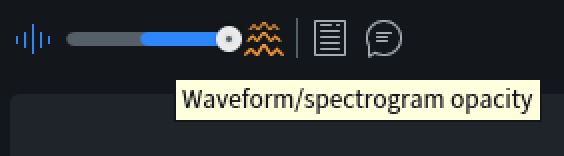

Now that we have the file in RX, make sure to turn this slider to the right to show the Spectrogram only.

Now after that it should look like this:

This is using Mel scaling, if you right click on the numbers list(20k and such). you can change the scaling. Mel is the best scaling in our case since it shows vocals better than Linear scaling would.

Spectrograms are graphical representations of frequencies which can determine whether your audio sample rate is 32k, 40k, or 48k.

There is a distinction between high-end frequency and low-end frequency in a spectrogram. The high-end frequency (48k-40khz), or the air region in the chart isn't audible for the human ears. But, it'll help to handle aliasing. Aliasing is the effect of new frequencies appearing in the sampled signal after reconstruction, that were not present in the original signal. In other words, it creates artifacts to your model.

Meanwhile you can hear some of the low-end frequencies. If you were to resample from 40k to 32k, then most of the high-end and low-end frequencies are gone at the cost of less harsher sibilances and -plosives sounds like I mentioned before.

For example, this is noise. The orange area may look like breathing that's masked under the artifacts, but RVC will consider this noise as it's barely audible and you'll only hear static or dry air. The blue areas surrounding the audio are also noise. You can think of these as layers that needs to be removed when we use the Spectral Denoise module later.

Now this is breathing. Keep in mind that RVC will consider "soft breathing" as a white noise if the breath sounds are too low (around -40db). Proper vocal breathing are grunts like "huffs, "hahhhhs, "hoohhhhhs". There cannot be harsh inhaling sounds. Breathe sounds by itself without a voice or tone behind it will also cause RVC to think it is noise. Without breathes, the model sound will robotic.

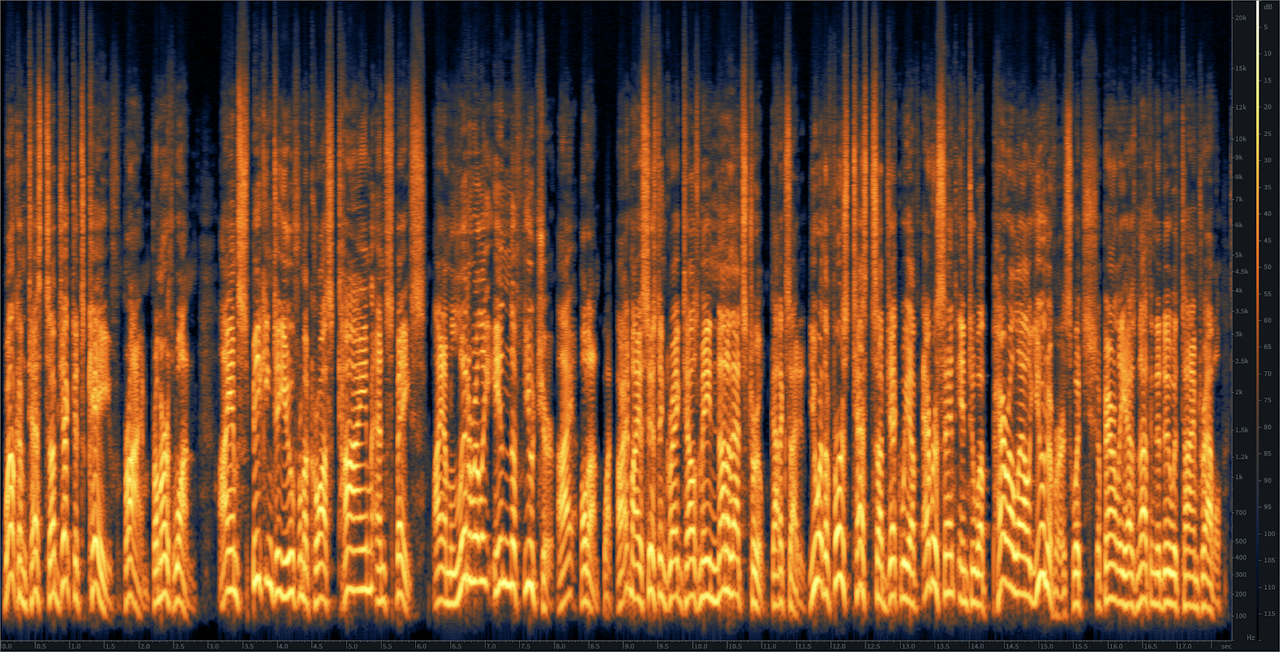

And this is speech:

The key principal behind preparing your dataset is doing the least audio processing as possible as you want to keep the overall robustness of the model. Excessively stacking vocal separator models such as UVR Inst Voc, Kim Vocals, Denoise, ensemble mode, and so forth can introduce noises to your dataset as it rips away frequencies from your audio. This harms the model fidelity and quality.

This helps to remove most of the clipping that is occurring throughout the audio around the -0db range. Do not touch the make-up gain as it will alter the natural dynamic range of the audio. You can press "preview" to see that it is working as indicated with "clipped intervals repaired". If it does nothing, then you can skip this part.

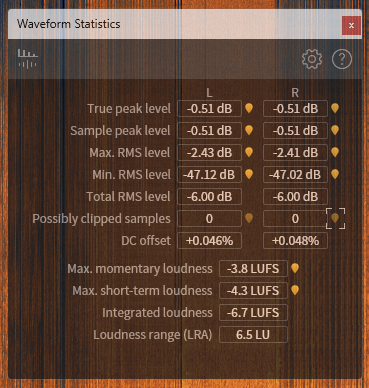

Before starting the process for separation, make sure that the audio has zero DC offset to prevent further issues that would interrupt the processing due to the bottom line noise. The waveform statistics is under the Window tab in RX11.

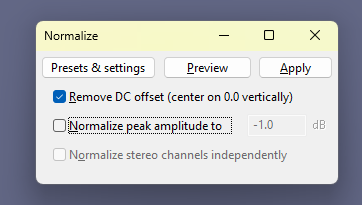

This can be done in audacity by going to the Effect tab > Volume and Compression > Normalize then check the box to remove the DC offset.

If you prefer to EQ in RX 11, then click on the EQ module and enable only the hp bell curve. Keep the frequency precision to 6 and the frequency at 30-32hz. Your DC offset will be at 0% if you've done it correctly.

Here's a small comparison with the changes after vocal separation. Without DC offset:

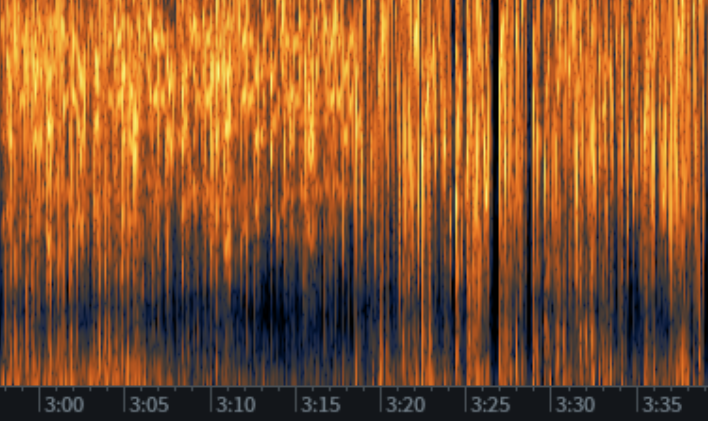

With DC offset:

While keeping in mind of doing the least processing, you want to keep the audio as natural as possible for RVC, or Hifigan. Hifigan is the generative adversarial network that makes up our discriminator and generator for cloning sounds and training stability. Having audio that has been damaged or reconstructed will affect the generalization of the graphs to fully replicate the clarity and accent of the voice.

Reverb is multiple sources of sound returning and echo is the delay. It is important to remove these from the dataset otherwise it'll cause your model to have artifacts as Hifigan cannot replicate the model's clarity.

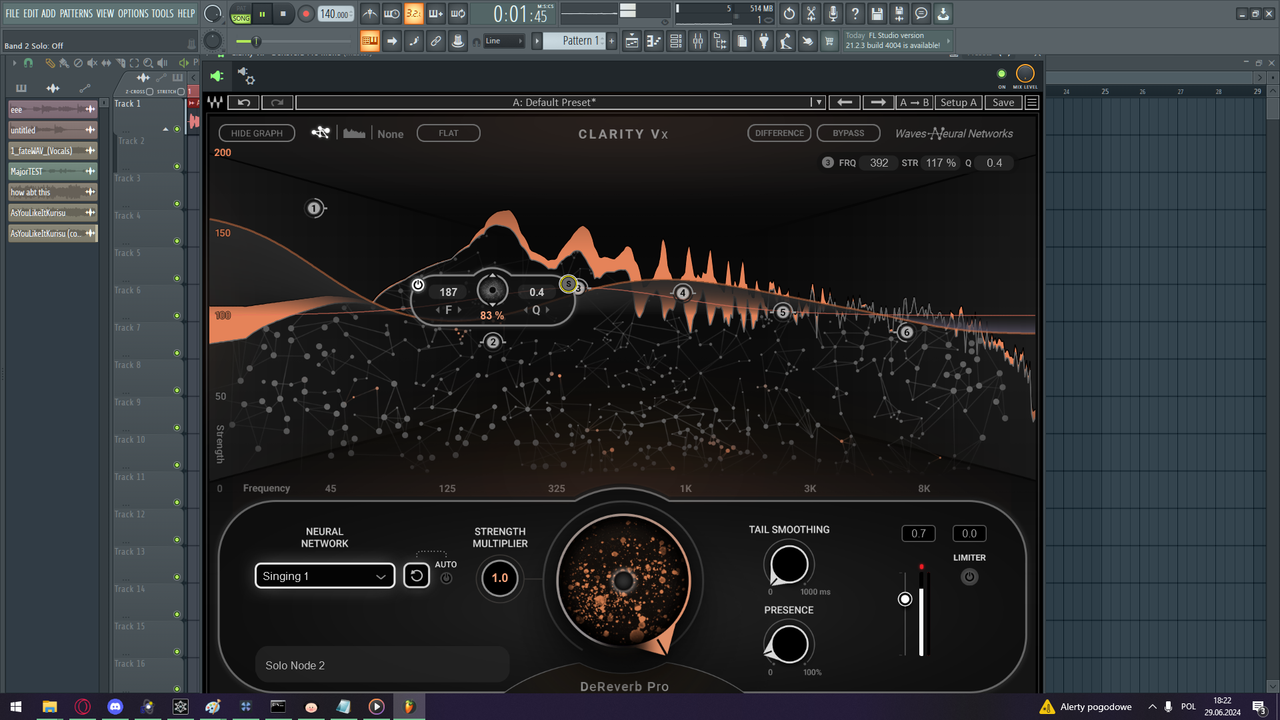

The current best Dereverb plugin is the Clarity VX DeReverb Pro module, another paid software that you can get for free. The aggressiveness can be tweaked or finetuned to your liking as it cuts into the audio and does not reconstruct the frequencies. Clarity VX cannot de-echo the audio so you need to use UVR De-echo or RX Dialogue Isolate.

If you don't want to use ClarityVX, the most common method is to use UVR Dereverb and De-echo separately as you have full control on what's needed for your audio. There is no predetermined settings as each audio is different. The rule of thumb is to use an aggression of 3.0 -5.0 and nothing more than that. If the audio does not have reverb or echo, do not use any of these models as it can muffle the audio.

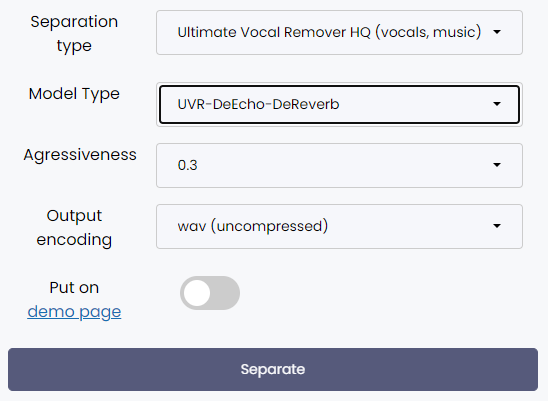

If you only rely on MVSEP, you're forced to use UVR-DeEcho-Dereverb as there is no standalone option for the dereverb model. The cutoff frequency for this separation model would be 17.5khz.

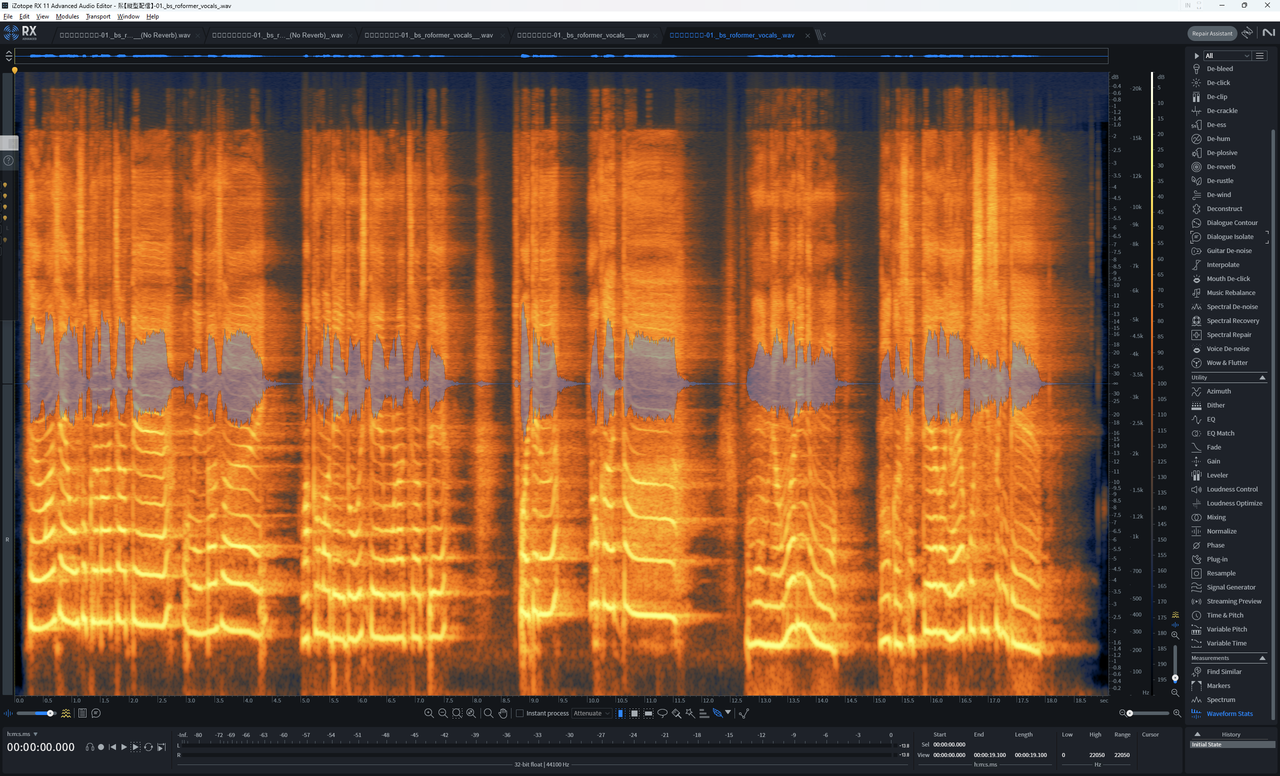

Here's what audio with mono reverb will look like on Izotope RX11:

And the result of DeEcho-Dereverb at 0.5 aggression:

There may be leftover reverb or echo that weren't removed so that'll be addressed in the RX Dereverb module later in the Manual Denoising section. I will also troubleshoot the audio increasing in volume after dereverb and deecho in the FAQ Regarding Normalization and Compression section.

Izotope's Spectral Denoise provides natural noise reduction and will preserve the quality of your audio as it minimizes artifacts. It analyzes the signals of noise that we select and modifies the frequency components. Essentially, UVR Denoise is not needed afterwards since the cleaning has been processed in spectral. The rest of the the cleanup is done through our manual denoising via RX11.

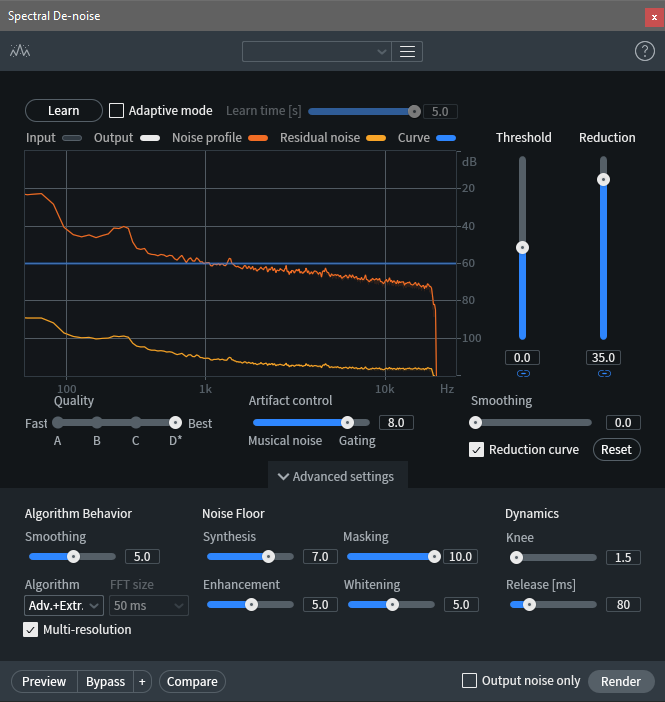

Here is the settings that were used in the previous guide, which is mostly fine if you can't recognize patterns in a noise profile. Artifact control, whitening, Release [ms], Smoothing, and Reduction could be adjusted based on particular datasets. Again, don't fix it if it aint broke.

You only need to do one or two passes of spectral denoising. Doing further processing than that will compress, or degrade your audio. Be cautious of overdoing it with the noise profile (selecting breathing or speech by accident) as RX might take away details and important aspects of a person's voice.

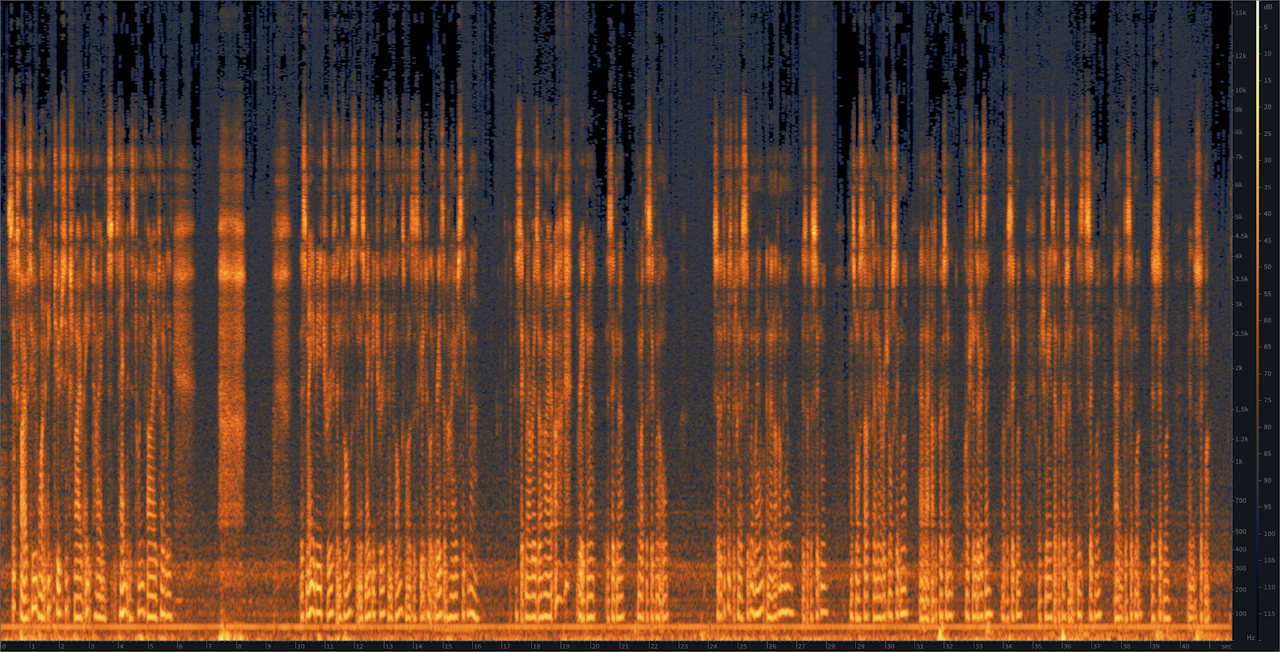

This is what the audio looks like before spectral denoising:

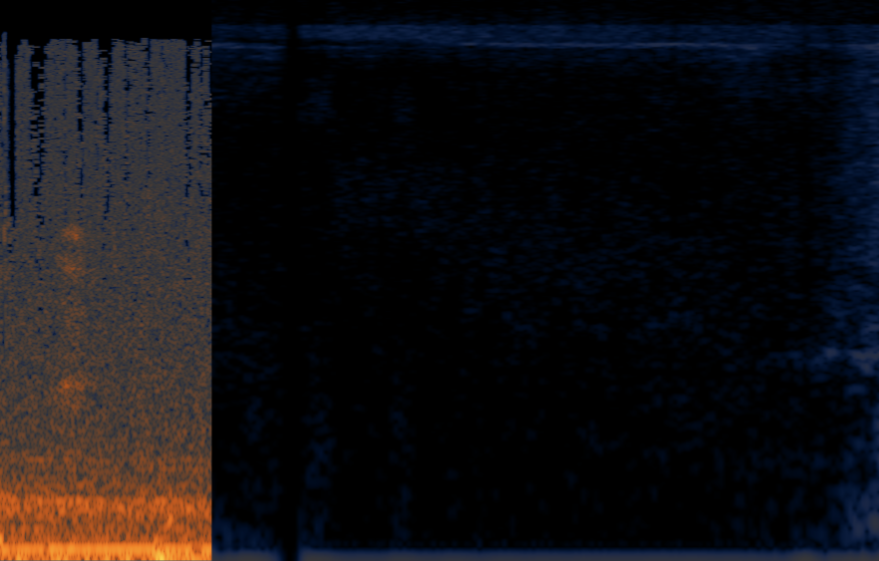

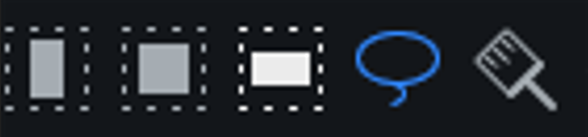

Now we select the noise (click and hold shift after selecting an area to include multiple audios) then press learn in the Spectral Denoise module after we captured the entire noise profile. Unselect the audio and click render.

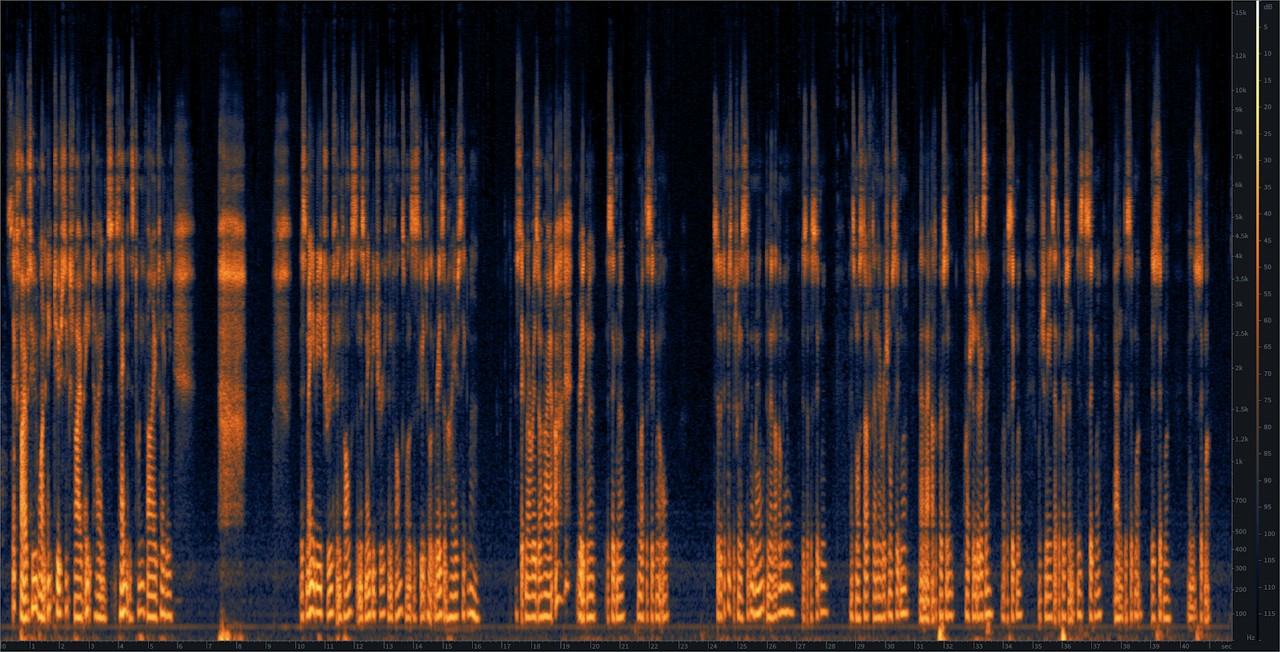

Now in this case one pass of spectral denoise wasn't enough. Repeat the steps done in the first pass by selecting the areas with the blue noise.

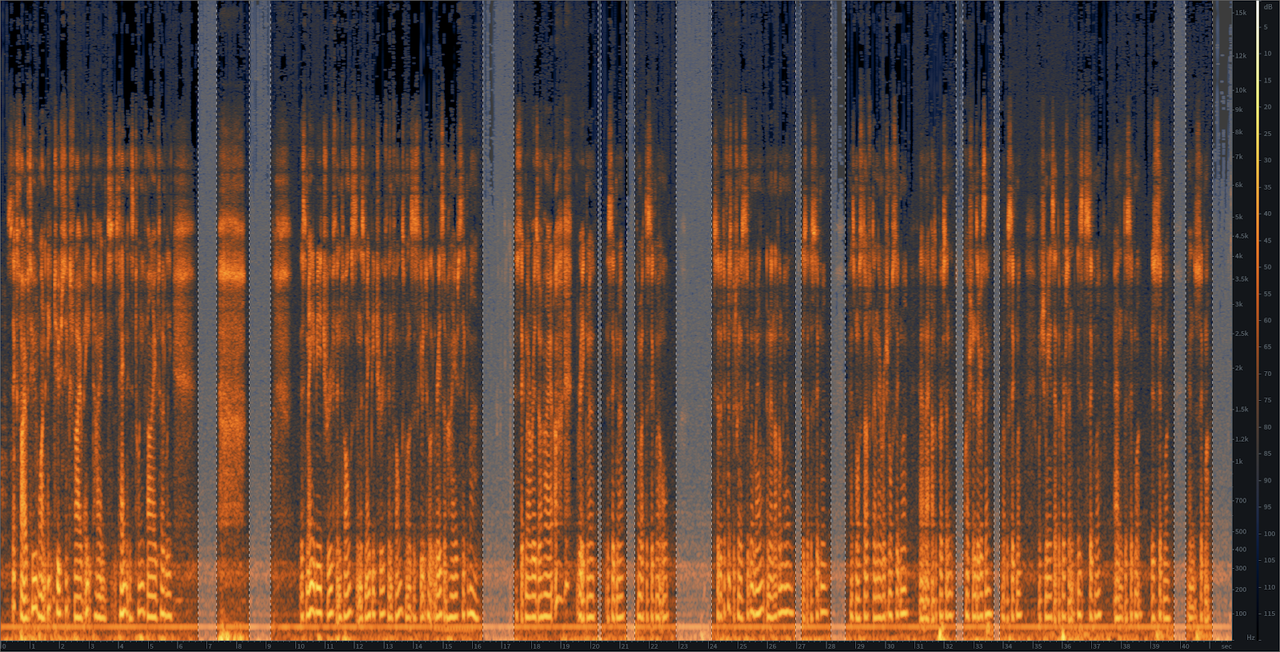

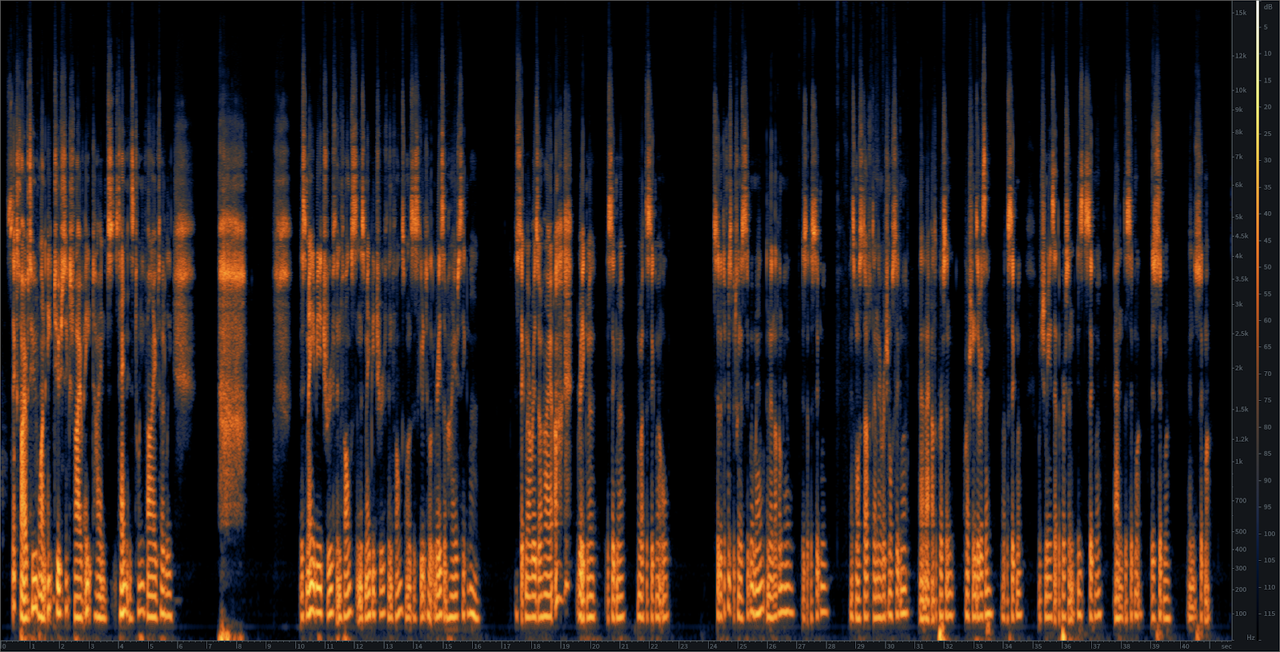

The 2nd pass will remove the noise.

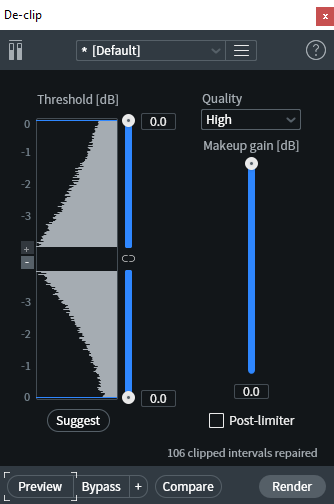

Why does my audio sounds like it's clipping or distorted? Should I use the gain tool in RX? Audios will usually have crackling and clicking noises introduced if it's over 1.0+db. We don't want to use the gain tool to address this since it's a compressor. If it doesn't have any of those issues, then leave the dialogue alone to maintain its natural range.

Again, try to maintain the natural dynamic range if possible. If you must decrease the volume on a particular dialogue because its too loud for your ears and you still need to use the RX Dereverb module, consider normalizing between -2db or -3db. The use of the RX Dereverb will put it back to normal volume.

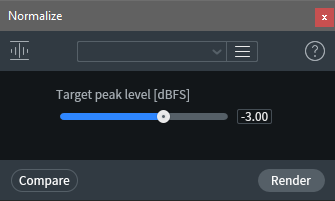

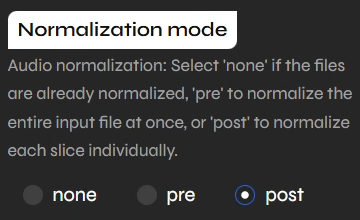

When should I normalize the whole dataset? It is optional to use this module as it can be argued that rvc will do the normalization for you with -2db. You can normalize the dataset when it has been thoroughly cleaned at the end, if you want.

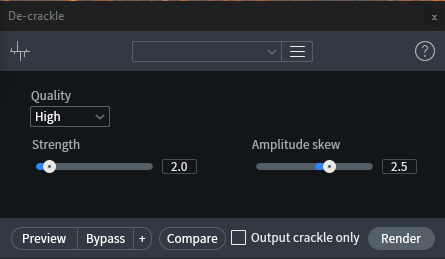

De-crackle Only use this tool if you hear crackling noises in specific parts of your dialogue/speech. It's not a requirement to use it.

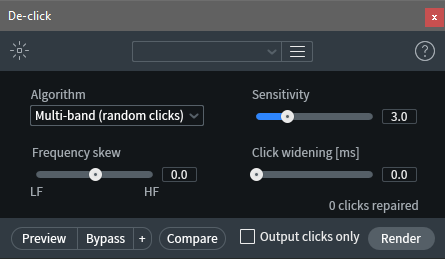

Mouth De-clicking and De-click Only use mouth de-clicking when clicking noises are audible. It's a good practice to use mouth de-clicking on only the click and not the entire dialogue/audio. Adjust the sensitivity or frequency skew as needed, but do not go overboard as it can remove the finer details of our audio.

• This module is specifically tailored to address mouth noise issues in vocal recordings. Mouth noises are typically caused by saliva, lip smacks, tongue clicks, or other oral sounds that can be distracting or unpleasant to listen to in vocal recordings. Mouth de-click module preserves the integrity and naturalness of the vocal performance while reducing these types of mouth noises.

We run the de-click module only as a last resort when mouth de-click doesn't work. Using both modules together may strip away the "k" consonants of our model.

• This module is designed to remove or reduce short impulse noises such as clicks, pops, and digital clipping artifacts from audio recordings. These noises can occur due to various reasons, including imperfections in the recording equipment, electrical interference, or flaws in the audio signal itself. The De-click module analyzes the audio waveform and identifies these short, transient noises, then applies processing algorithms to smooth out or remove them, restoring the audio to a cleaner state.

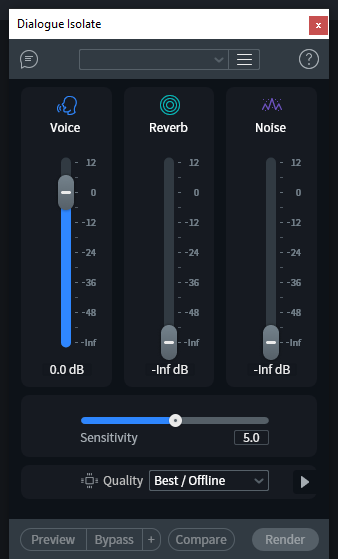

Dialogue Isolate Use this tool when you have audible room echo that could be removed on specific parts of your speech. Do not use it for the entire dataset because it may be inaccurate and strip away details. Or sometimes it doesn't work. Keep the settings the same here including sensitivity.

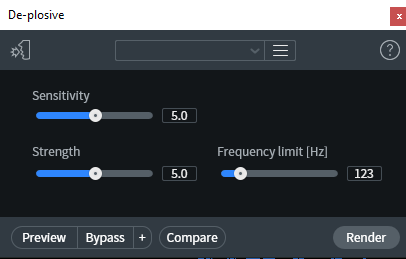

De-plosive Use Deplosives when there are audible thumps of air coming through the mouth. Again, -plosives are consonant sounds that needs attention. Specifically the P, T, K, and CH sounds. There are no right settings for this so adjust it until the roughness of the -plosives are gone.

Plosives look like this. Do not select the whole speech and only the plosives as suggested in the red lines.

De-hum Use De-humming to take care of low or high frequency hums. There are no consistent settings for this as each situation is different for your audio.

• Sensitivity will adjust the amount of hum that will be removed.
• Bands, or notch filters will increase depending on the complexity of the noise.
• Filter Q is the range selector.

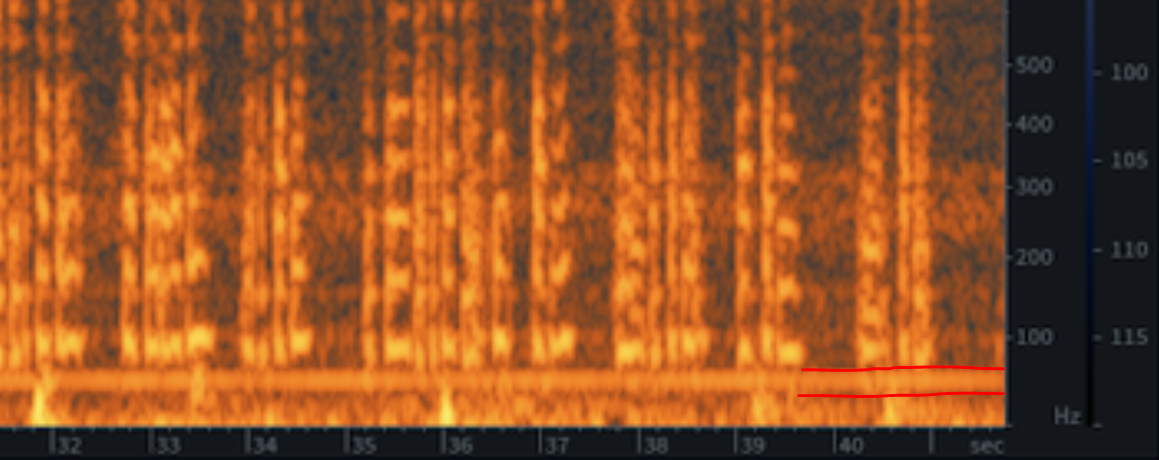

For example, use the frequency selector tool, select the humming occurring below 100hz, then press learn and render.

The red underline shows what you should be looking for.

EQ This has already been covered in the section for removing the Removing DC Offset. Do this if you haven't done it already. It takes care of low-end noise, but if your dc offset is already at 0% then skip this module.

You should have noticed that RX11 moves the audio closer to each other whenever you delete a space or speech. Use the Lasso or Brush tool to delete dialogue precisely, which should preserve the spacing in phonetics. Make sure it does not cause clipping on the waveform as it'll look like a sharp spike. You can also clean up the leftover residuals left behind by spectral denoising.

Audios with thumping, SFX sounds, ringing noises, and weird vocalizations or breaths that might affect the voice model should be removed from the dataset as it'll have those characteristics. You can try to lasso out the possible source of the noise, but keep the audio as natural as possible without damaging the frequencies.

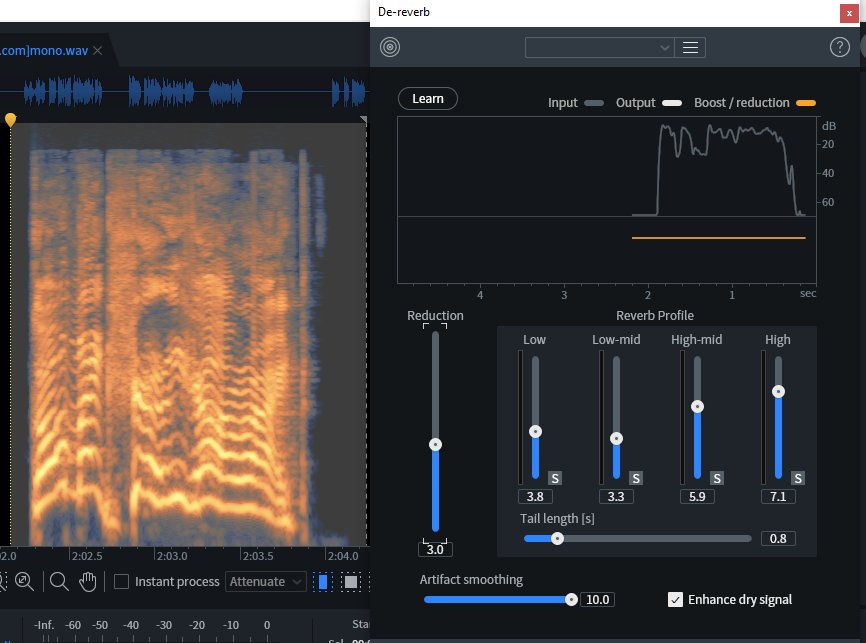

The RX Dereverb module will remove reverb that's leftover from the audio and may help remove noises. With RX Dereverb, select the audio, press learn and render. Adjust the reduction if needed. Do not use a strong reduction as it may muffle the audio. You can always undo with Ctrl + Z.

Refer to the FAQ Regarding Normalization and Compression if the volume is peaking or "introducing noises", which isn't the case at all. Do note that RX Dereverb will raise the volume by 2db each time you use it.

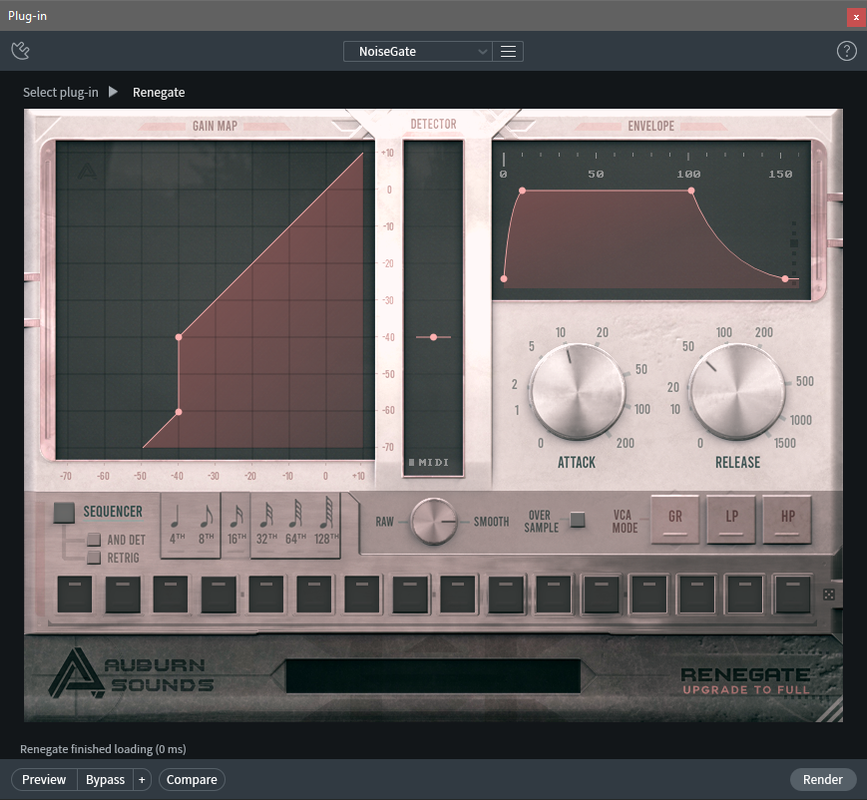

We can open Audacity and run the the dataset through Auburn Renegate. After that convert your dataset to mono since RVC works on mono and not stereo. There are two ways of neatly removing the silences in your dataset called Audio Labeling and Truncate.

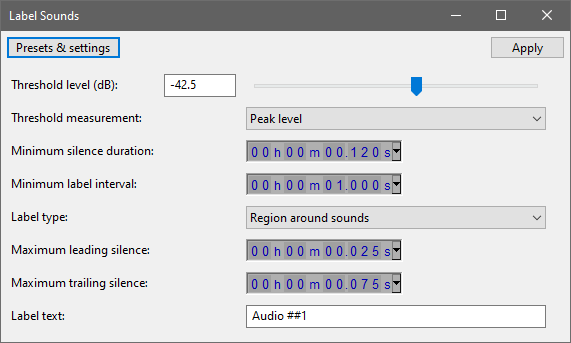

Follow these steps: Open the menu for labeling.

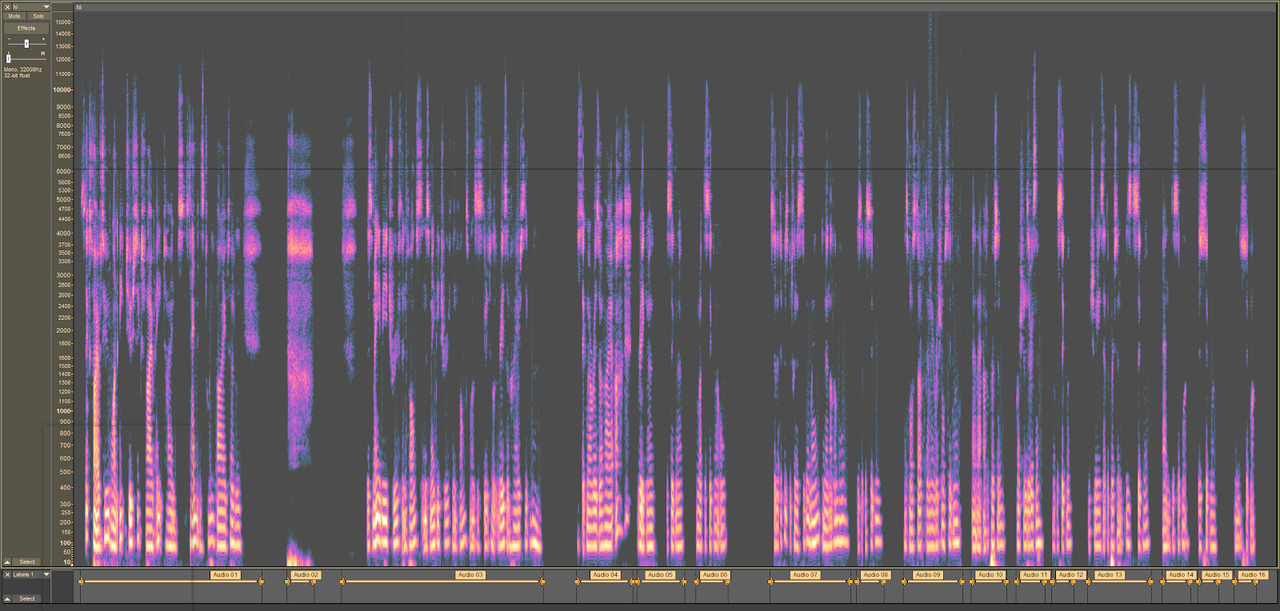

You will now have it like this:

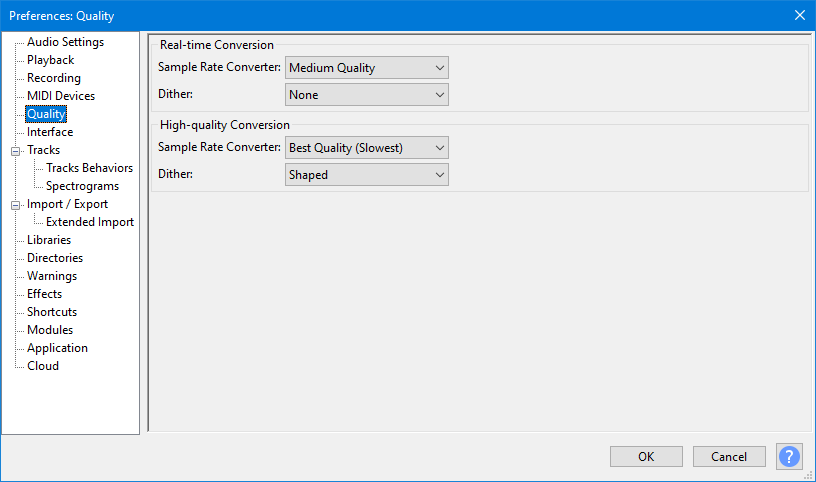

Turn off shaped dither with Ctrl + P > Quality since we are exporting with WAV 32-Bit or FLAC 24-bit anyways.

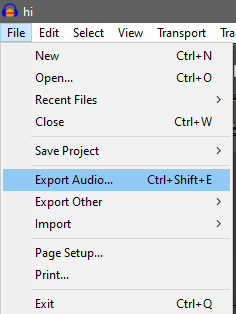

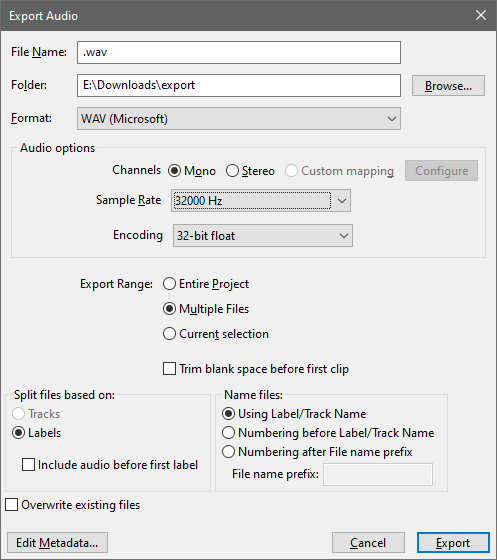

Now we go to export our audio.

The output will be like this:

Now go in the RVC folder and place all these files in datasets folder. Zip it up if needed.
